NKY ConduliTM

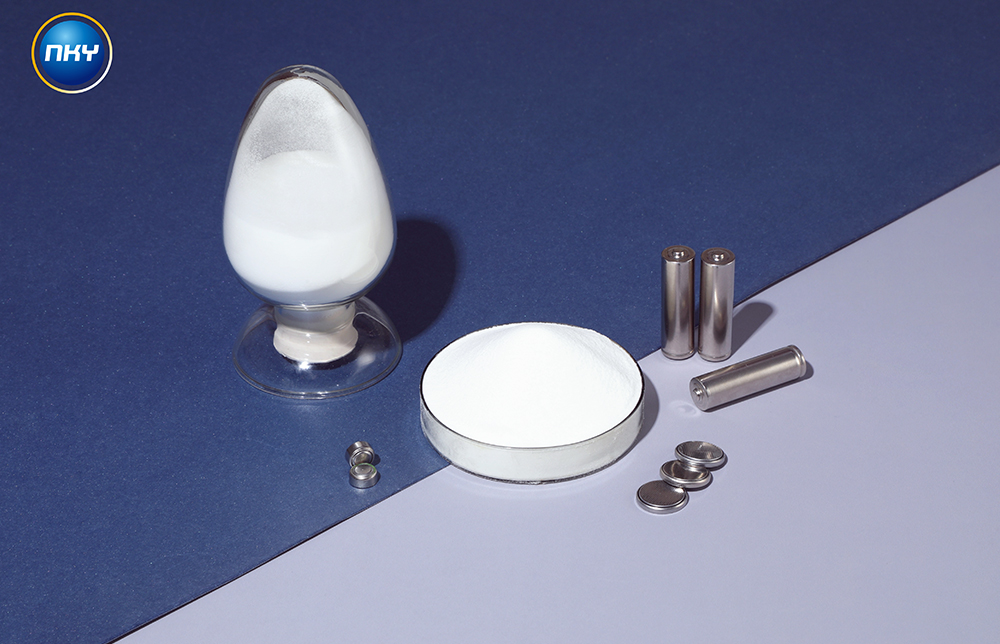

Appearance: White to off-white free-flowing powder, odorless or with a slightly characteristic odor.

Properties: Non-toxic, non-irritating, hygroscopic, readily soluble in water, alcohol, amines, and various other organic solvents. It has excellent solubility, film-forming properties, chemical stability, physiological inertness, adhesiveness, and complexation ability.

Product Standards: Electronic Grade.

Specifications: Based on the polymer molecular weight and the viscosity of the aqueous solution, the K value is calculated and divided into the following models. The K value testing method is derived from the kinematic viscosity of a 1% aqueous solution.

Product features: Can effectively control the moisture content in K30 to be less than 2.5%.

Main Application Areas:

Dispersants and suspending agents for carbon nanotube conductive paste.

Dispersants and suspending agents for graphene conductive paste.

Dispersants and suspending agents for carbon black conductive paste.

Dispersants and suspending agents for carbon nanotube-graphene composite conductive paste.

Coating agents and dispersants in the production process of lithium iron phosphate.

Dispersants for cathode and anode pastes in battery cells.

Dispersants for separator membrane coating materials.

Surface stabilizers, growth regulators, morphological control agents, nanoparticle dispersants, and reducers in the synthesis process of new materials for new energy applications.

Conduli^TM dispersion mechanism

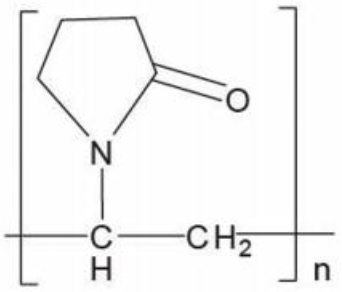

Polyvinylpyrrolidone (PVP), as a non-ionic amphiphilic polymer with both hydrophilic and hydrophobic groups, possesses good adsorption capabilities, thereby reducing the interfacial tension between two phases.

When carbon nanotubes are added to a N-methyl-2-pyrrolidone (NMP) solution containing PVP, the hydrophobic groups of the PVP molecules and the hydrophobic surface of the carbon nanotubes are attracted to each other, leading to the adsorption of PVP onto the surface of the carbon nanotubes. As the concentration of the dispersant increases, more PVP molecules adsorb onto the carbon nanotubes, gradually forming a PVP molecular film. The steric hindrance effect can overcome the van der Waals forces between the carbon nanotubes and prevent their agglomeration, resulting in a stable and uniform suspension of carbon nanotubes.

The dispersion mechanism for graphene and lithium iron phosphate cathode materials is similar to the one described above.

Application examples:

Typical formula for conductive paste of carbon nanotubes
